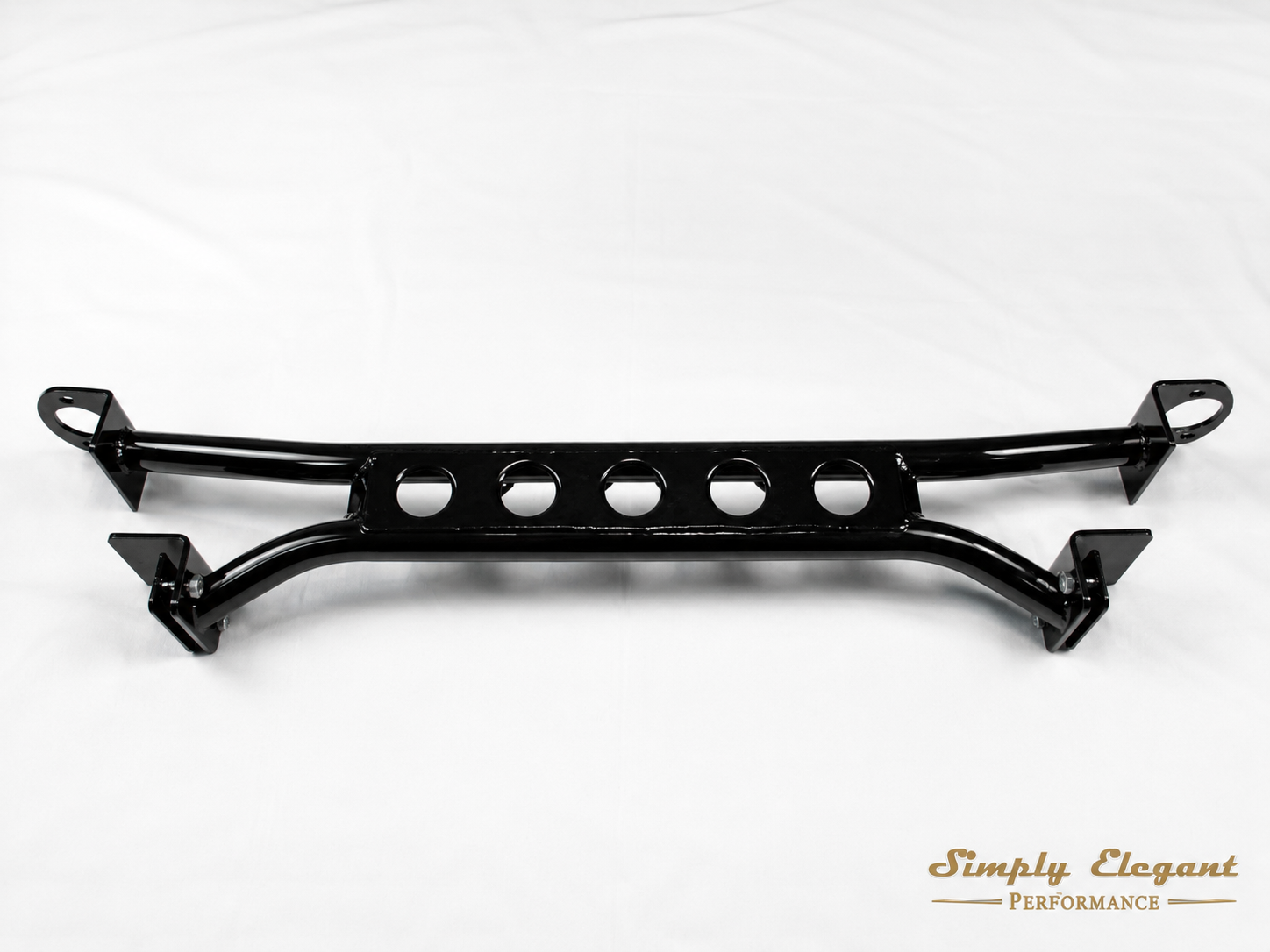

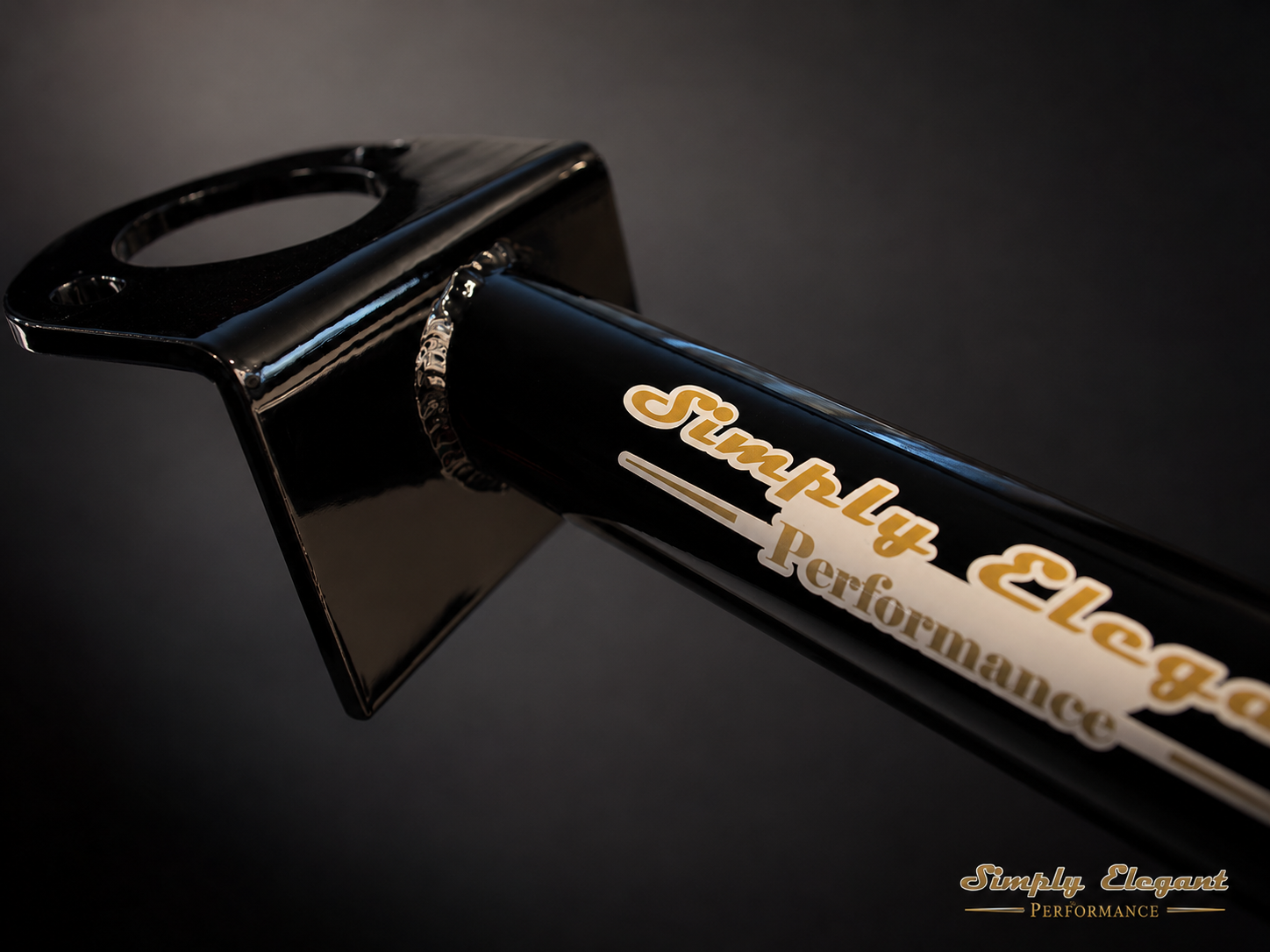

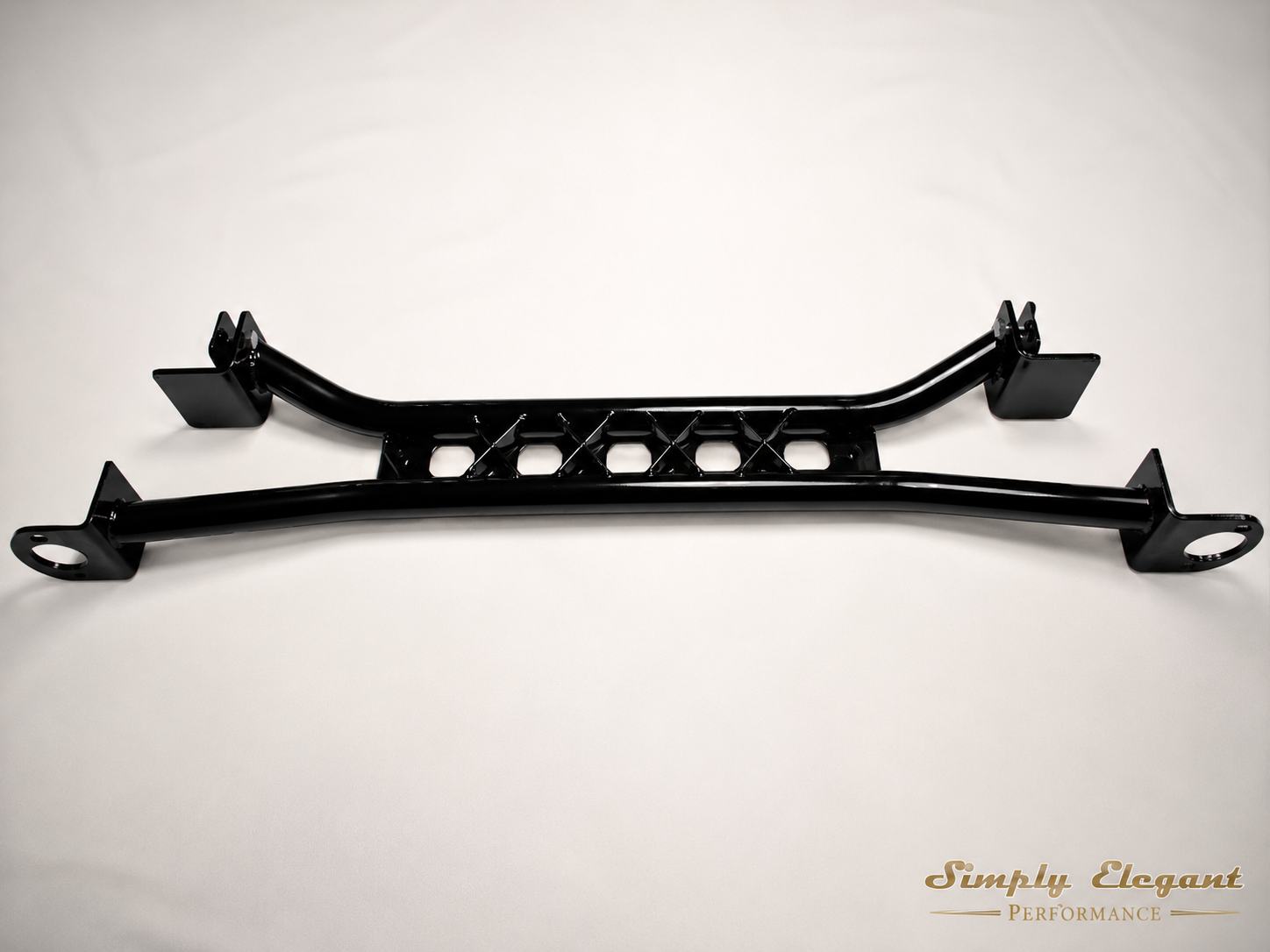

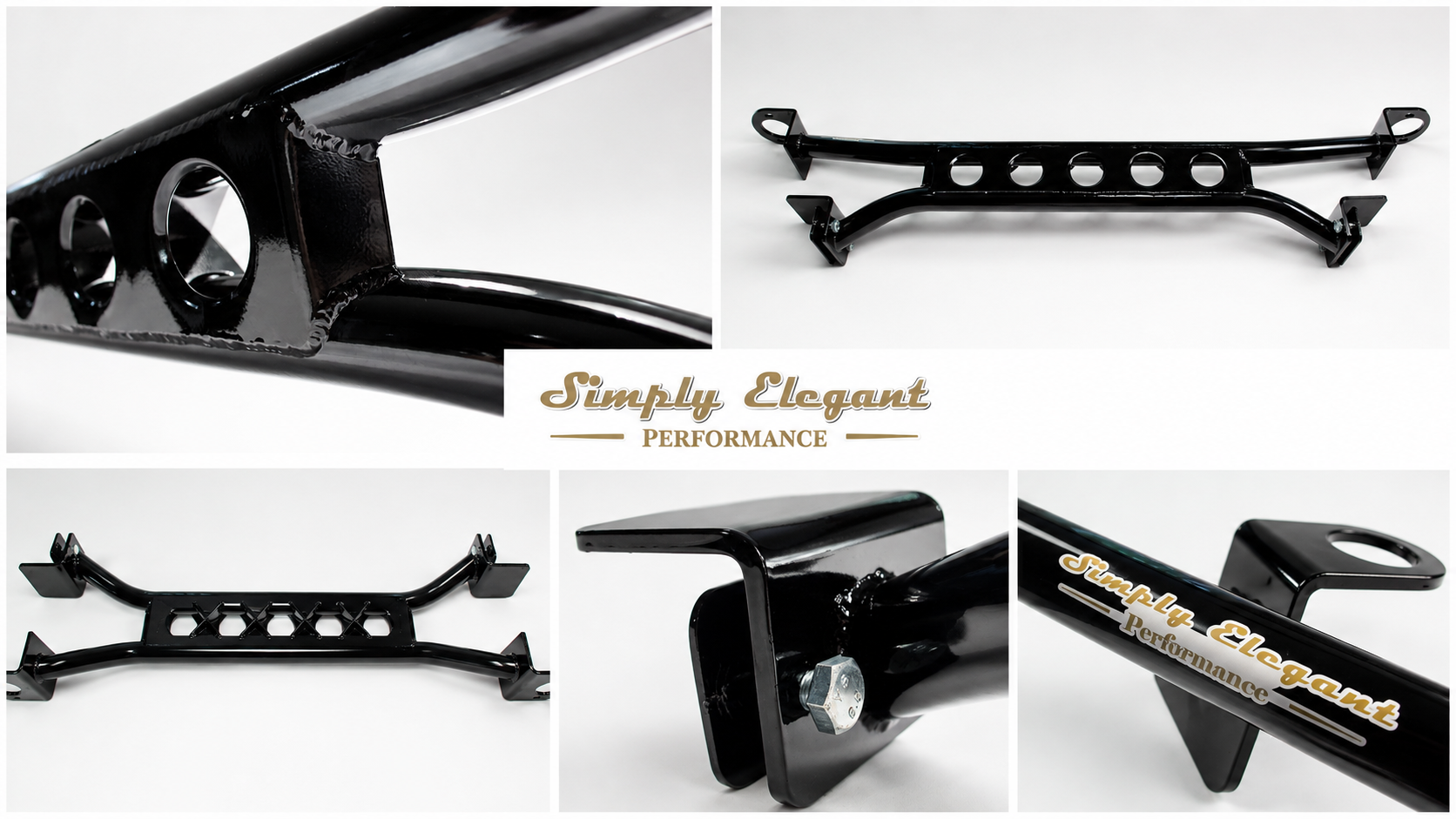

Precision-Engineered Rear Chassis Reinforcement for the BMW E46

The Simply Elegant Performance Rear Strut Brace is designed to increase rigidity across the rear of the E46 chassis by connecting the rear strut towers while also tying the assembly into the chassis rails.

Unlike a conventional rear strut brace that only spans between the strut towers, this design incorporates adjustable sliding chassis-rail mounting plates. These allow the brace to create a more complete structural connection between the rear strut towers and surrounding chassis structure.

The formed and welded steel construction combines functional chassis reinforcement with a distinctive motorsport-inspired appearance and durable powder-coated finish.

Key Features:

• Formed steel construction for excellent rigidity
• Connects the rear strut towers and chassis rails

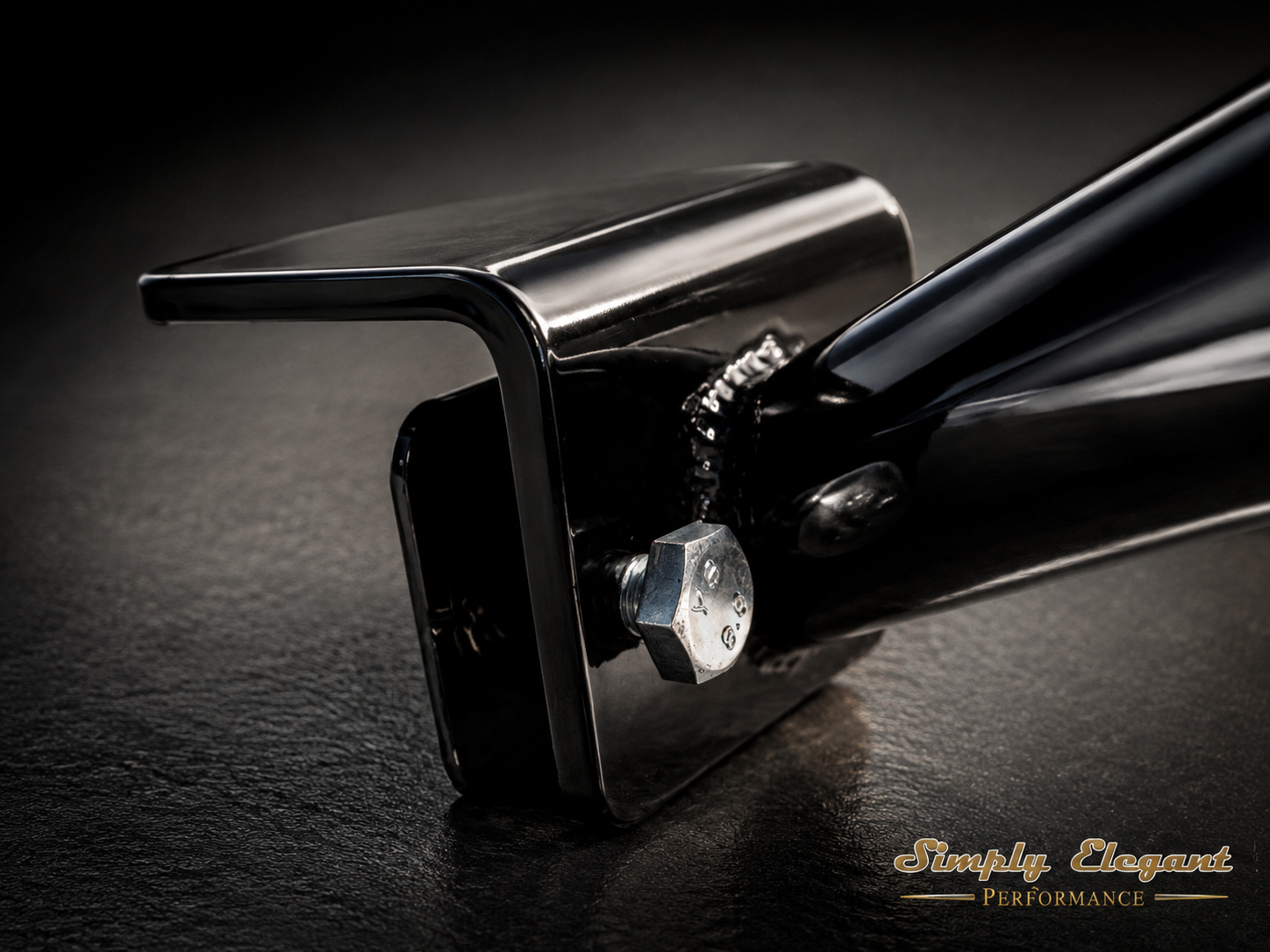

• Adjustable sliding chassis-rail mounting plates
• Fully TIG welded
• Dimple-die openings for motorsport styling
• Fixture welded for consistent alignment and fitment
• 4 powder-coated finish options
• Designed for straightforward installation
• Uses factory rear strut-tower mounting points
• Designed and developed in Ontario, Canada

Vehicle Fitment:

Designed for BMW E46 models, including:

• 1999–2005 BMW 3 Series sedan
• 2000–2006 BMW 3 Series coupe
• 2000–2006 BMW 3 Series convertible
• 2000–2005 BMW 3 Series touring

Important:

Compatibility with M3 models, aftermarket suspension components, trunk modifications, audio systems, roll cages, and other modifications should be confirmed before ordering.

Installation of the chassis-rail mounting plates requires drilling into the vehicle chassis.

What's Included:

• One rear strut brace assembly
• Adjustable chassis-rail mounting plates
• Required mounting hardware
• Installation instructions

Installation:

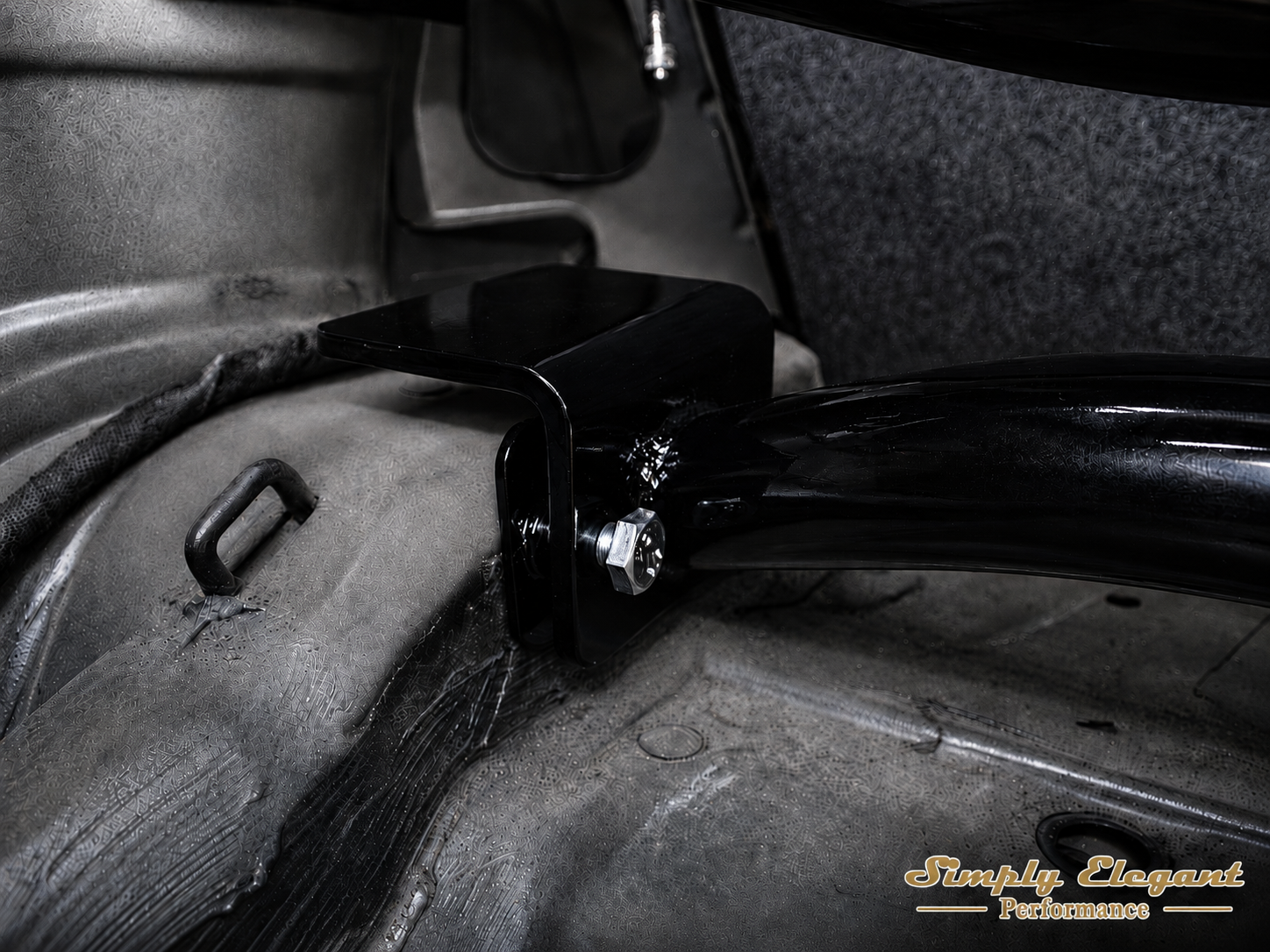

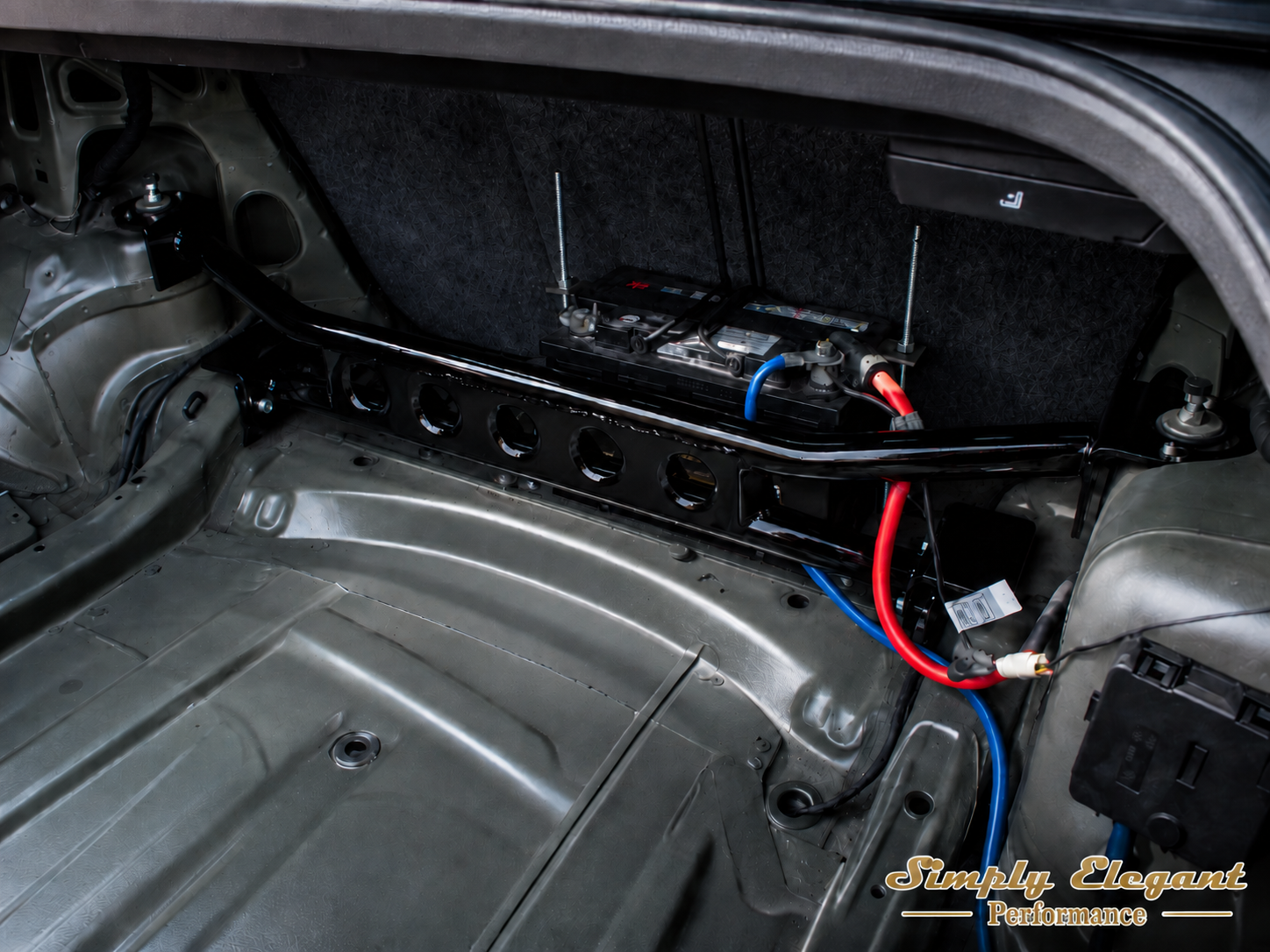

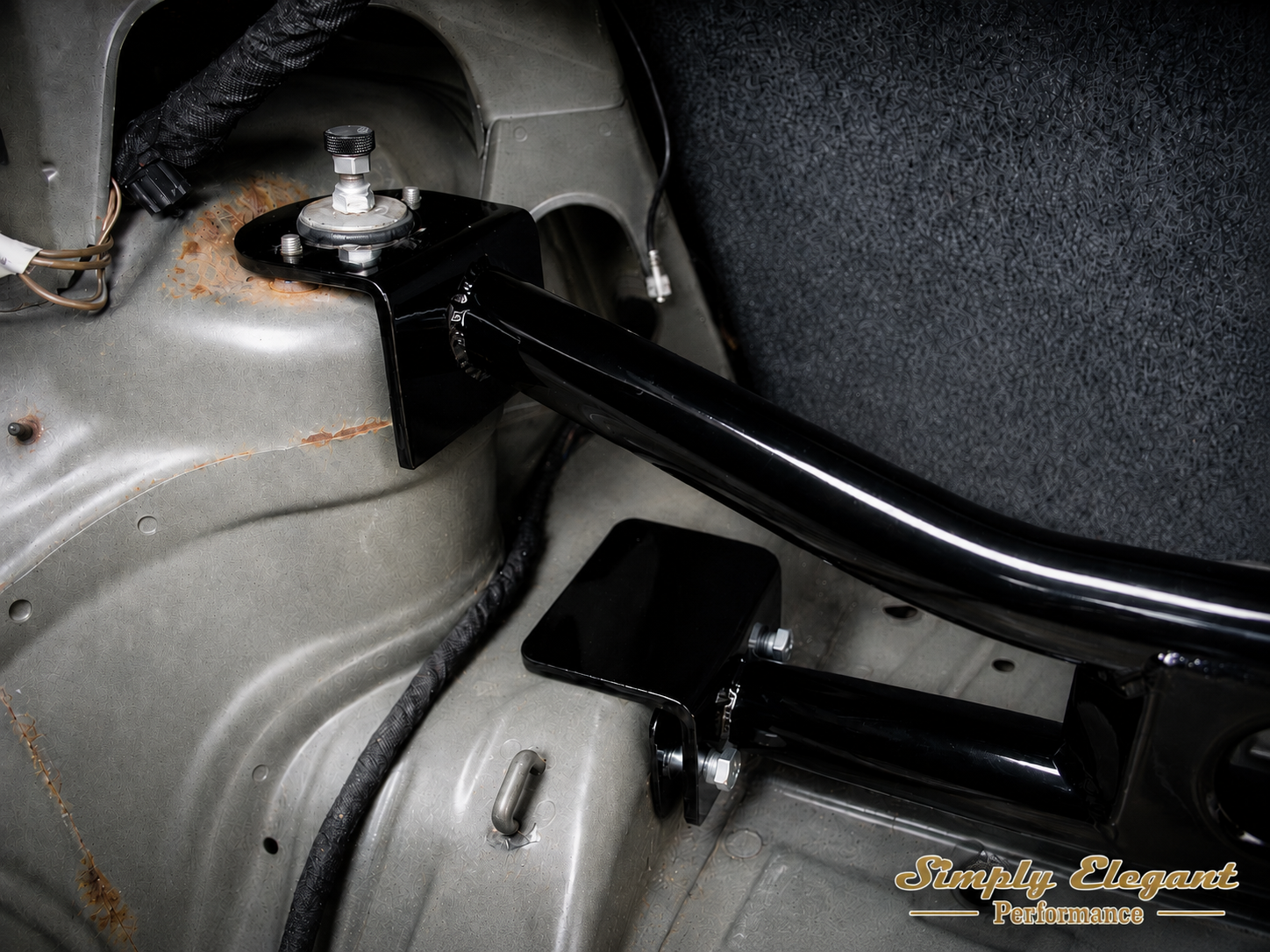

The main brace installs using the factory rear strut-tower mounting points. The adjustable sliding plates extend from the brace to the chassis rails and are secured using the supplied hardware.

Installation requires access to the rear strut towers and drilling for the chassis-rail mounting points. The vehicle should be parked on a level surface during installation, with all fasteners tightened to the appropriate specifications.

Made to Order

Each strut bar is fabricated, finished, and inspected after your order is placed. Current lead time: 3–4 weeks.

Warranty:

Covered by a 1-year warranty against manufacturing defects.
